GS-BM series Precision Forming Surface Grinding Machine
Best-selling machine to represent the KURODA.
High-performance precision forming surface grinding series with excellent cost performance
Data Download
Features

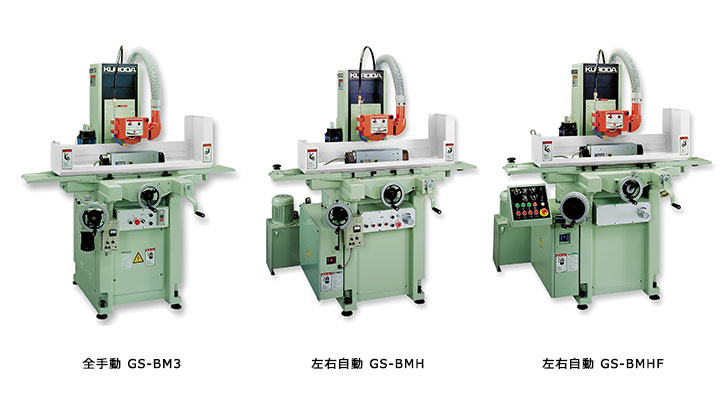

High-performance and Economical "Hand-operated" Model GS-BM3 - Fully hand-operated type.

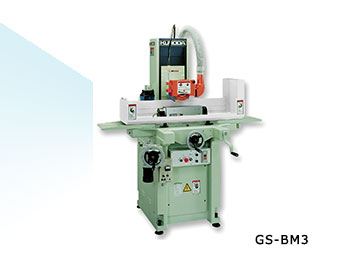

Model GS-BM3 - Fully hand-operated type.
Hand-operated precision surface grinding machine with outstandingly high accuracy and distinguished performance come from th most sophisticated use of KURODA's technical knowhow based on its international status as a mold manufacturer. This model features light longitudinal feed handwheel, automatic lubrication, perfect dust-proofing, superb durability and high ccuracy assured by the uniquely designed spindle constructin.
The Series of automated models save your cost and labor!
Model GS-BMH - Longitudinal Auto Fees.

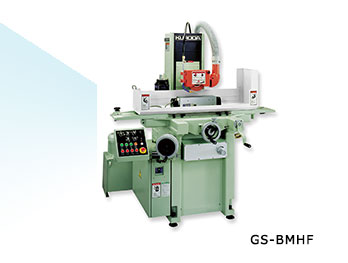

Model GS-BMHF - Fully Automated
Performance / Specifications
| GS-BM3 | GS-BMH | GS-BMHF | |
|---|---|---|---|
|
Working surface of the table (L x Wmm) |
500x150 | ||
|
Traverse of the table (Long x Cross mm) |
580x200 | ||
|
Distance from table top surface to bottom surface of wheel (mm) |
40~375(at ɸ180) | ||
|
Dimension of electro-magnetic chuck (L x W x H mm) |
Tilting type:380x110x125 / Flat type:450x150x70 | ||
|
Dimension of the wheel (D x W x B mm) |
180x6~22x31.75 | ||
| Spindle speed(rpm) | 2700 | ||
| Motor wheel spindle(kW) | 2.2(4P) | ||
|
Dimension of the machine (W x L x H mm) |
1650x1260x1750 | 1650x1400x1750 | |
| Machine net weight(kg) | 1050 | 1220 | 1280 |
