NEW: Surface grinding machine "GS-126CV(s)"
This grinding machine achieves energy reduction, miniaturization, and easy operation.
New size machines have been released as GS-86CV series.
They also realize easy operation in spite of their large form.
Data Download
Features
Operability
- Manual grinding is easy to operate, and you can set full automatic operation with ease. The layout of operation switches, handles, and a touch panel possesses excellent operability and visibility.
Energy saving and ecology
- This machine includes KURODA ball screws and servo motor structures for its longitudinal feed, which reduce fliction loss.
- It is unessesary to maintenance hydraulic oil, and reduces temperature change. It provides accuracy stabilization and reduces temperature effect to other machine around grinding machine.
Customization

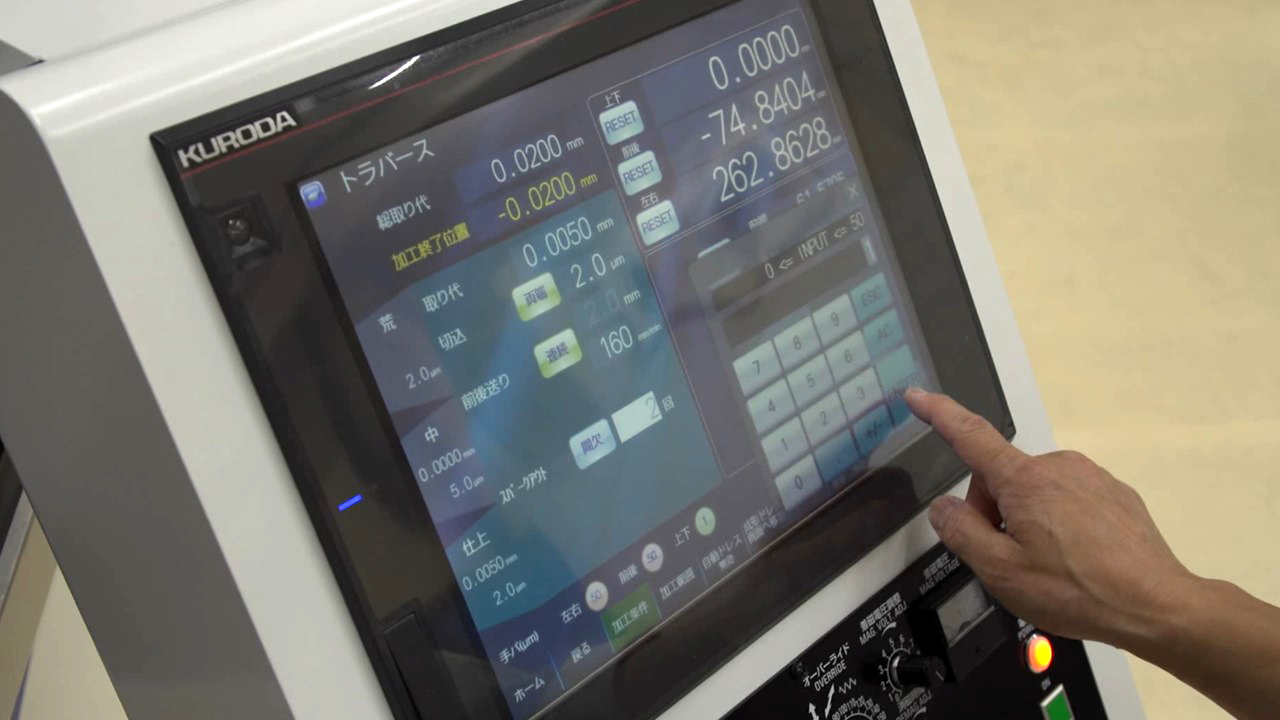

We offer various options such as interactive operation software "GS-SmartTouchTM" which provides a variety of processing and dressing in simple operation , On-machine measuring system, and ultra-fine bubbles that dramatically improve the processing efficiency.
Performance / Specifications
| Unit | GS-126CV(s) | |
|---|---|---|
| Standard magnetic chuck size（W×L×H） | mm | 1200x600x100 |
| Max.mass of workpiece | kg | 1500 |
| Longitudinal feed rate | m/min | 0～40 |
| Saddle cross feed | mm/min | 2000 |
| Vertcal feed speed | mm/min | 2000 |
| Wheel dimention(D x W xB) | mm | φ405x38xφ127 |
| Spindle motor | kW | 5.5 |
| Dimention of the machine (W x L x H) | mm | 4220x3070x2280 |
| Machine net weight | kg | 7000 |
