Slide screws with resin nuts PW series (Grade C10) / PY series (Grade C10)
Shaft diameter ø10, ø12 Accuracy grade, C7, C10
Low price and compact design compared to ball screws
Data Download
Features
Made by converting the rolling technology for ball screws
- Slide screws with resin nuts achieve a lead accuracy of the screw shaft equivalent to accuracy grades C7 and C10 of ball screws.

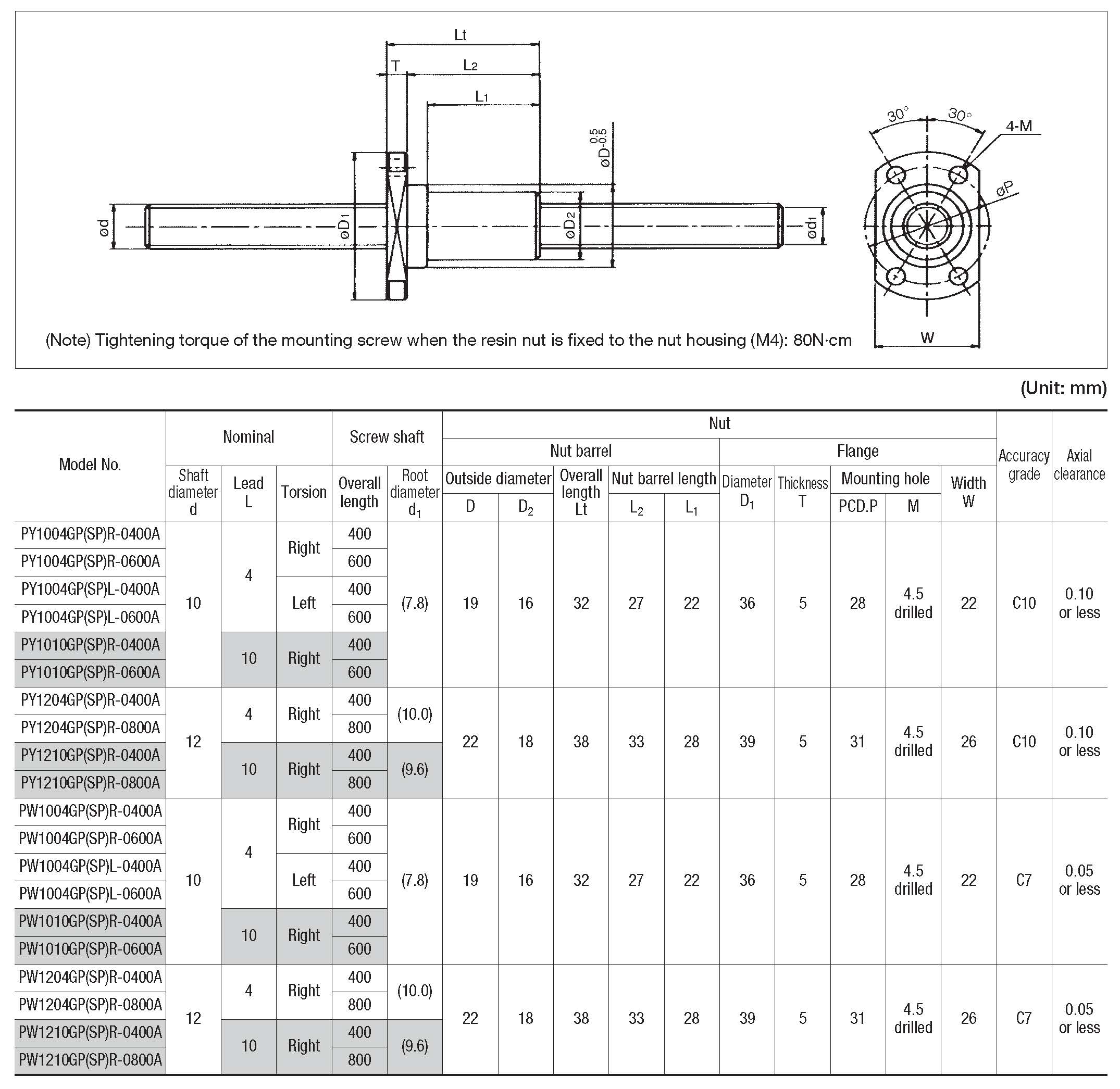

Exterior configuration
Standard slide screws / PW Series: Accuracy grade C7, PY Series: Accuracy grade C10
The screw shaft ends are unfinished to enable additional machining to the end type and dimensions required for the customer’s application.
When using, the screw shaft ends need additional machining in accordance with the conditions of use.

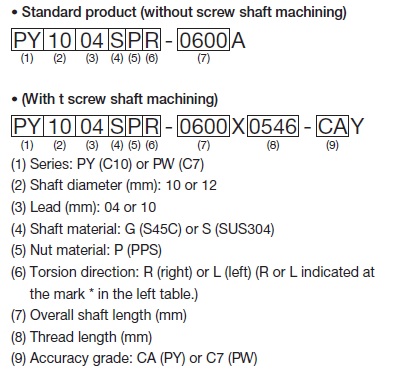

Ordering Number
Standard slide screws / PW Series: Accuracy grade C7, PY Series: Accuracy grade C10
