Features

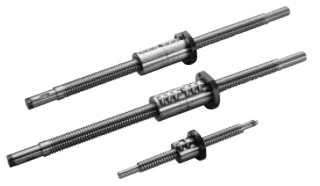

Tube circulation system with excellent versatility

• The tube method is a circulation system widely used in generic factory automation (FA) equipment and industrial machine applications.
• The tube circulation system manufacturing know-how accumulated over the years allows KURODA to manufacture various types of nuts with the number of circuits and ball diameter required for the customer’s application.

Performance / Specifications

Shaft diameter: ø5 to ø125 mm, lead: 1 to 50 mm, Accuracy grade: C0 to C10 grades

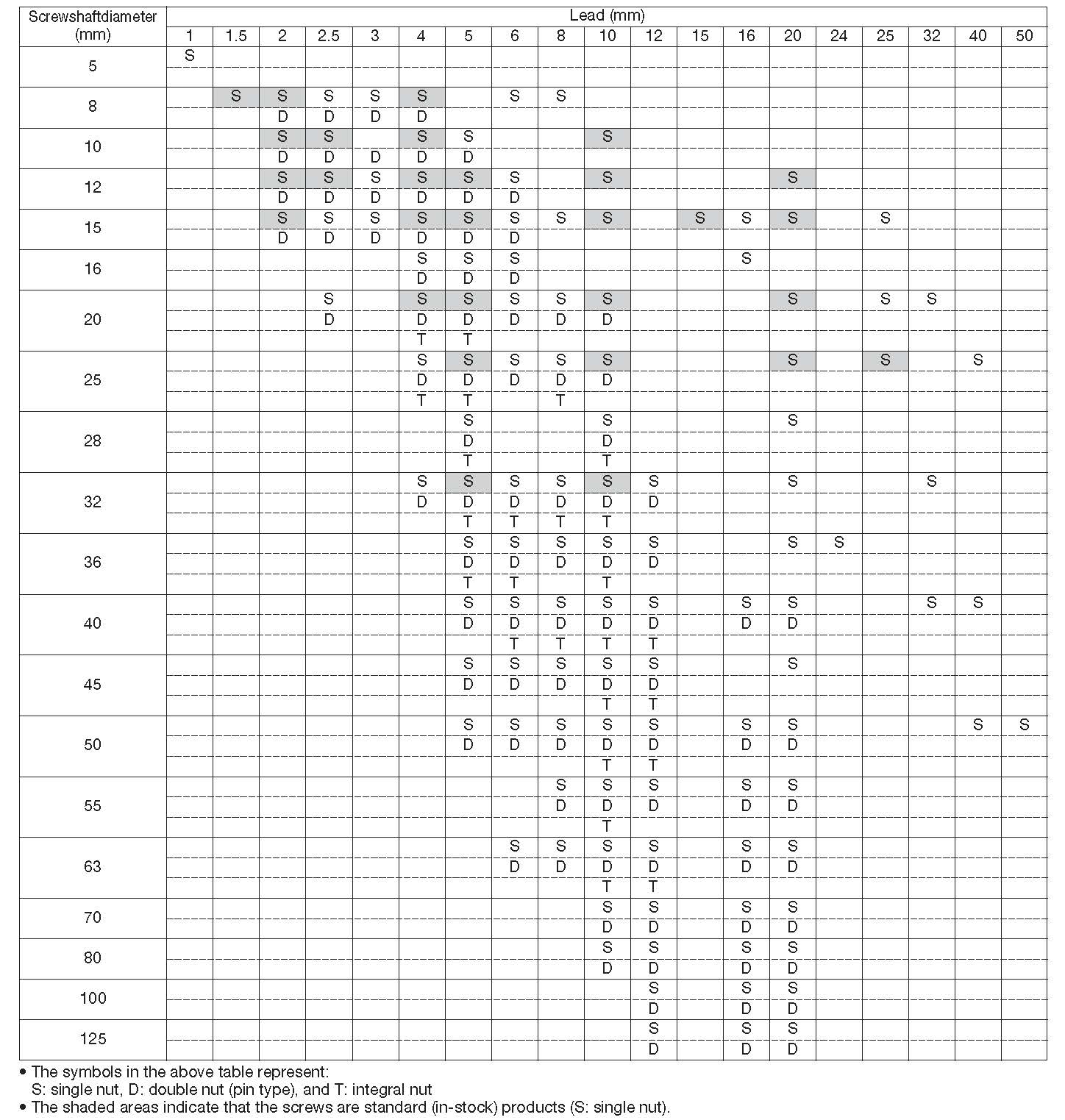

Shaft diameter and lead combinations

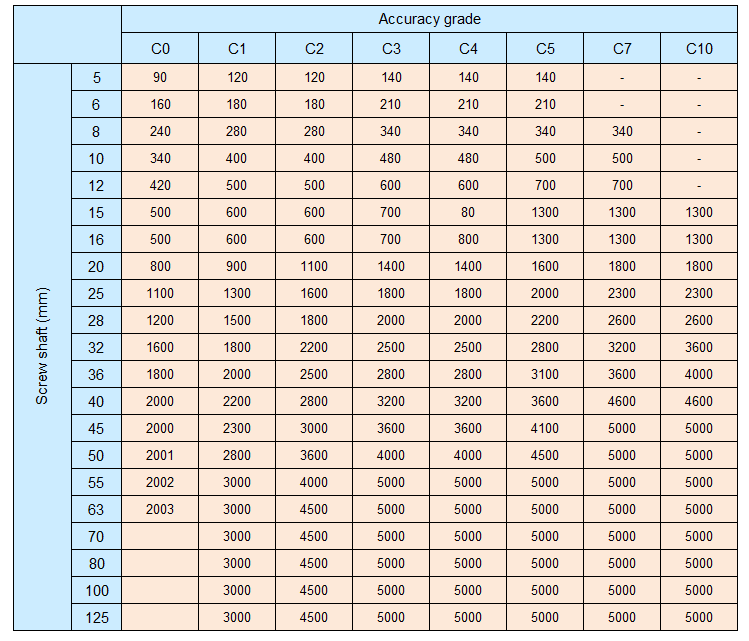

Accuracy Grade and Manufacturable Length of Screw Shaft

May differ depending on the specifications available length table. For more information, please contact us.

Ordering Number

For model numbers, clik the link below.(How to interpret Ball Screw model No.) (PDF)

Please click here for KURODA Selection Guide for Ball Screws

Please click here for Ball Screws technical information.
